DIN 6797 V

Equivalent Standards

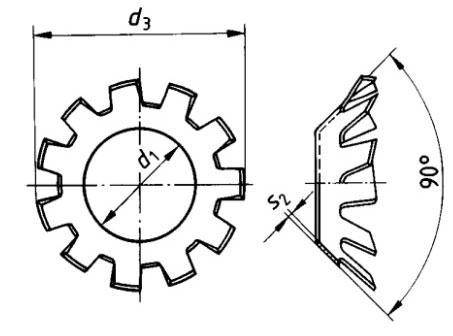

DIN 6797 V Toothed lock washers, conical V Dimensions

Nominal Size	d1		d3	s2	Teeth min.	Weight kg/1000pcs	For Thread
	Nominal size min	max	approx.
2.2	2.2	2.34	4.2	0.2	6	0.02	M2
2.7	2.7	2.84	5.1	0.2	6	0.025	M2.5
3.2	3.2	3.38	6	0.2	6	0.025	M3
3.7	3	3.88	7	0.25	6	0.04	M3.5
4.3	4.3	4.48	8	0.25	8	0.05	M4
5.3	5.3	5.48	9.8	0.3	8	0.12	M5
6.4	6.4	6.62	11.8	0.4	10	0.2	M6
8.4	8.4	8.62	15.3	0.4	10	0.4	M8
10.5	10.5	10.77	19	0.5	10	0.7	M10
13	13	13.27	23	0.5	10	1.2	M12
15	15	15.27	26.2	0.6	12	1.3	M14
17	17	17.27	30.2	0.6	12	1.3	M16

DIN 6797 V Toothed Lock Washers Weights

Size	Weight
	Type A	Type J
M1.6	0.010
M2	0.025	0.040
M2.5	0.040	0.045
M3	0.045	0.045
M3.5	0.075	0.085
M4	0.095	0.10
M5	0.18	0.20
M6	0.22	0.25
M7	0.30	0.35
M8	0.45	0.55
M10	0.80	0.9
M12	1.0	1.2
M14	1.6	1.9
M16	2.0	2.4
M18	3.5	3.7
M20	3.8	4.1
M22	5.0	6.0
M24	6.0	6.5
M27	8.0	8.5
M30	9.0	9.5

Weights are in kilograms per 1,000 pieces unless otherwise specified. All weights are approximations and strictly informative.
